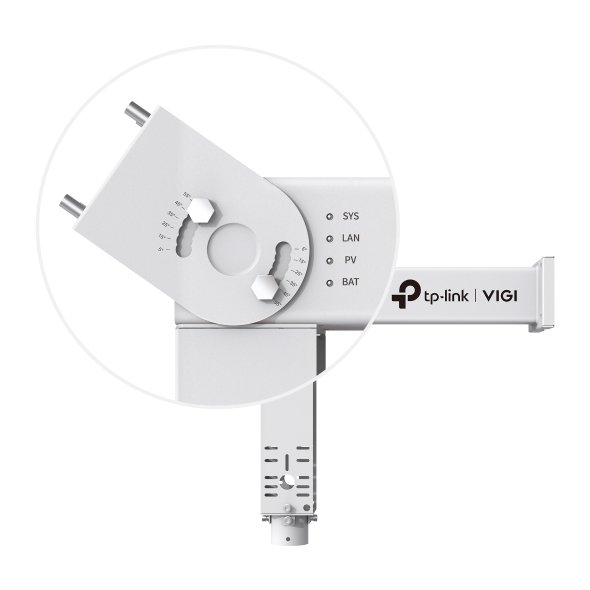

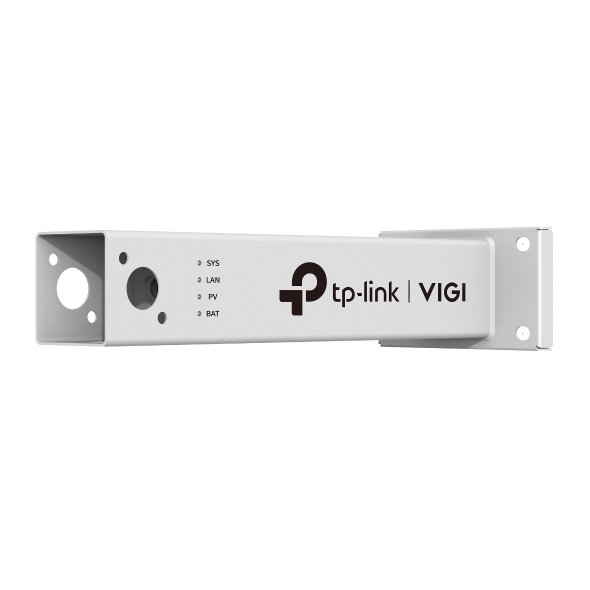

Controlador del sistema solar VIGI 31.2Ah

La batería de litio de grado automovilístico VIG garantiza un funcionamiento estable en condiciones exteriores adversas, suministrando energía continua a los sistemas solares.

Battery

• Type: Lithium
• Intelligent Auxiliary Heat: Yes

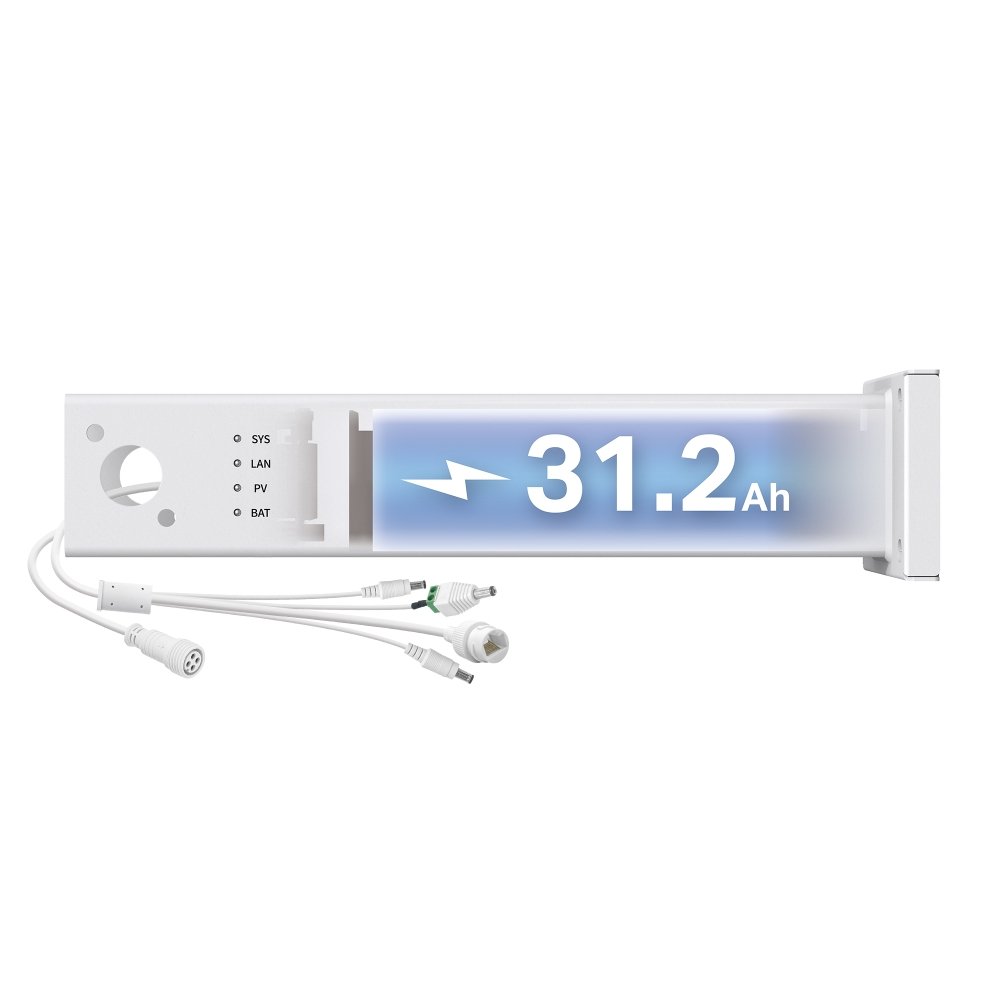

• Battery Capacity: 31.2 Ah
• Voltage: 10.8 V
• Max. Output Voltage: 12.6 V
• Life: More than 500 cycles
• Dimension: 242×70×65 mm (9.5×2.8×2.6 in)
• Charging Condition: • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating)
• Discharging Condition: • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating)

HARDWARE

• Interfaz: • 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
• Indicator LED: • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue

CARACTERÍSTICAS DE SOFTWARE

• Load Control: Yes
• High and Low Temperature Protection: Yes
• Overdischarge Protection: Yes
• Power Consumption Statistics: Yes
• Displays Real-time Load Status: Yes
• Battery Level Display: Yes
• Time Zone Selection: Yes
• Region Selection: Yes
• Schedule Saving: Yes
• Firmware Remote Update: Yes
• Remote Reboot: Yes
• Local LAN Management: Yes
• Intelligent Auxiliary Heating Control: -30°C~5°C
• Smart Charging Control: -30°C~5°C
• Account Management: Yes
• Remote Reset: Yes
• Remote Message Push: Yes

Otros

• Certificaciones: • CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66 Weatherproof
• Contenido del Paquete: • VIGI Solar System Controller • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
• Dimensiones de la Caja: 580×320×225 mm (22.83×12.60×8.86 in)
• Compatible Pole Diameter: Ø3.1-4.7 in (Ø80-120 mm)
• Peso: Package Weight: 9.9 kg
• Ambiente: • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing

Ver ficha técnica oficial del fabricante
