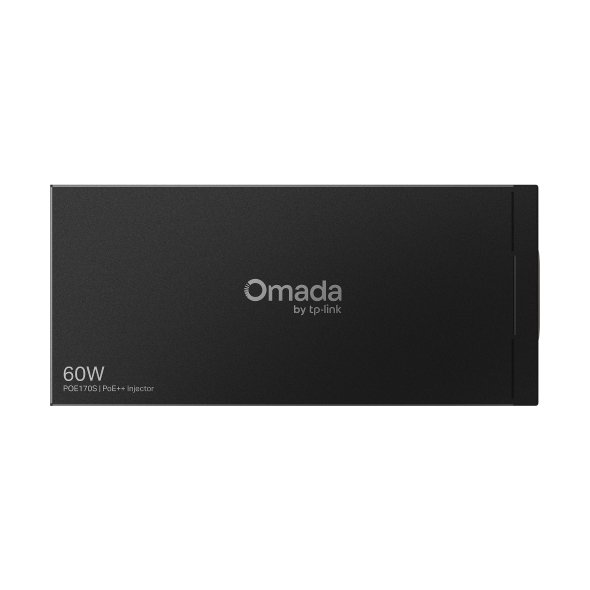

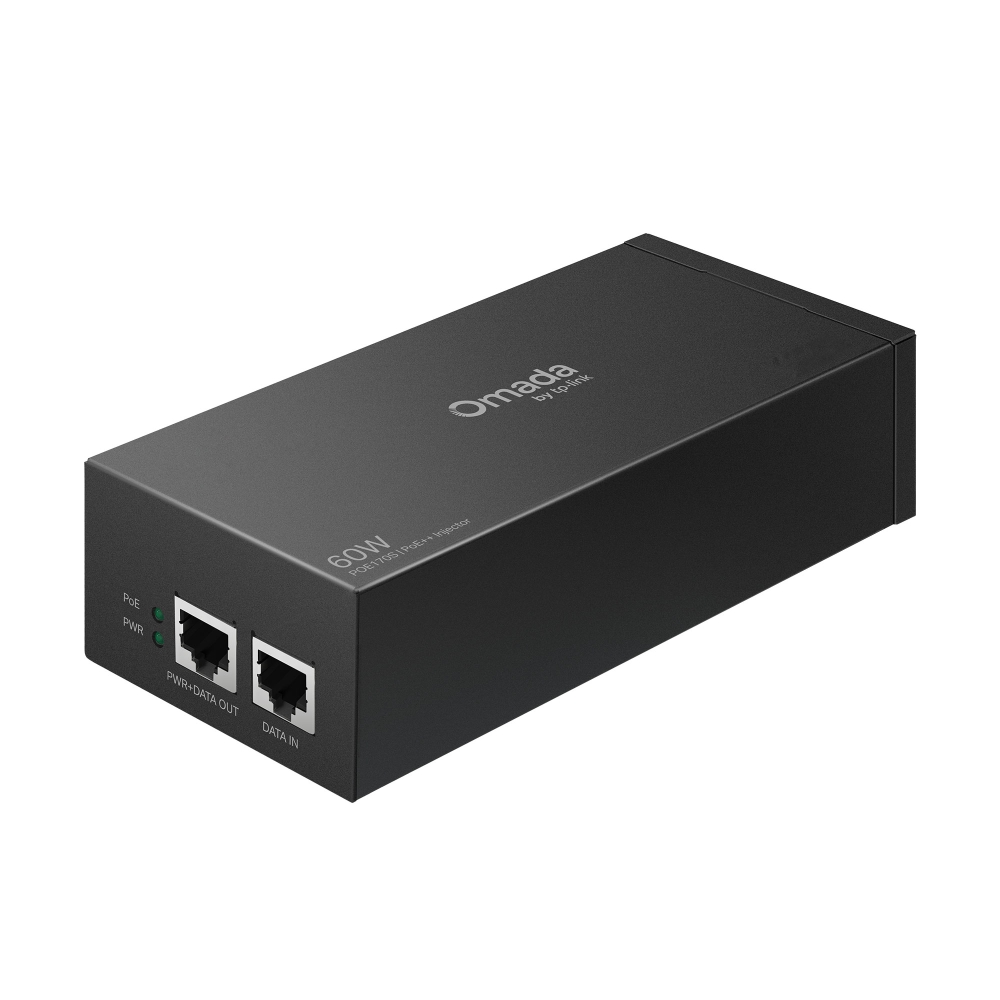

Inyector Omada PoE++ Dos puertos Gigabit 60 W

Inyector Omada PoE++

CARACTERÍSTICAS DE HARDWARE

• Estándares y Protocolos: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
• Interfaz: • 1× 10/100/1000Mbps RJ45 data-in port • 1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W) • 1× AC socket
• Medios de Red: • 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)
• Consumo de Potencia: • Input: 100-240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 60 W)
• Funciones Básicas: • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play
• LED: • Power • PoE
• Dimensiones: 6.1×2.8×1.7 in (155×70×42 mm)

GENERAL

• Material: Metal Casing

Otros

• Certificaciones: FCC, CE, RoHS
• Contenido del Paquete: • Omada PoE++ Injector POE170S • Installation Guide • Power Cord • RJ45 Cable
• Factores Ambientales: • Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing

Ver ficha técnica oficial del fabricante
