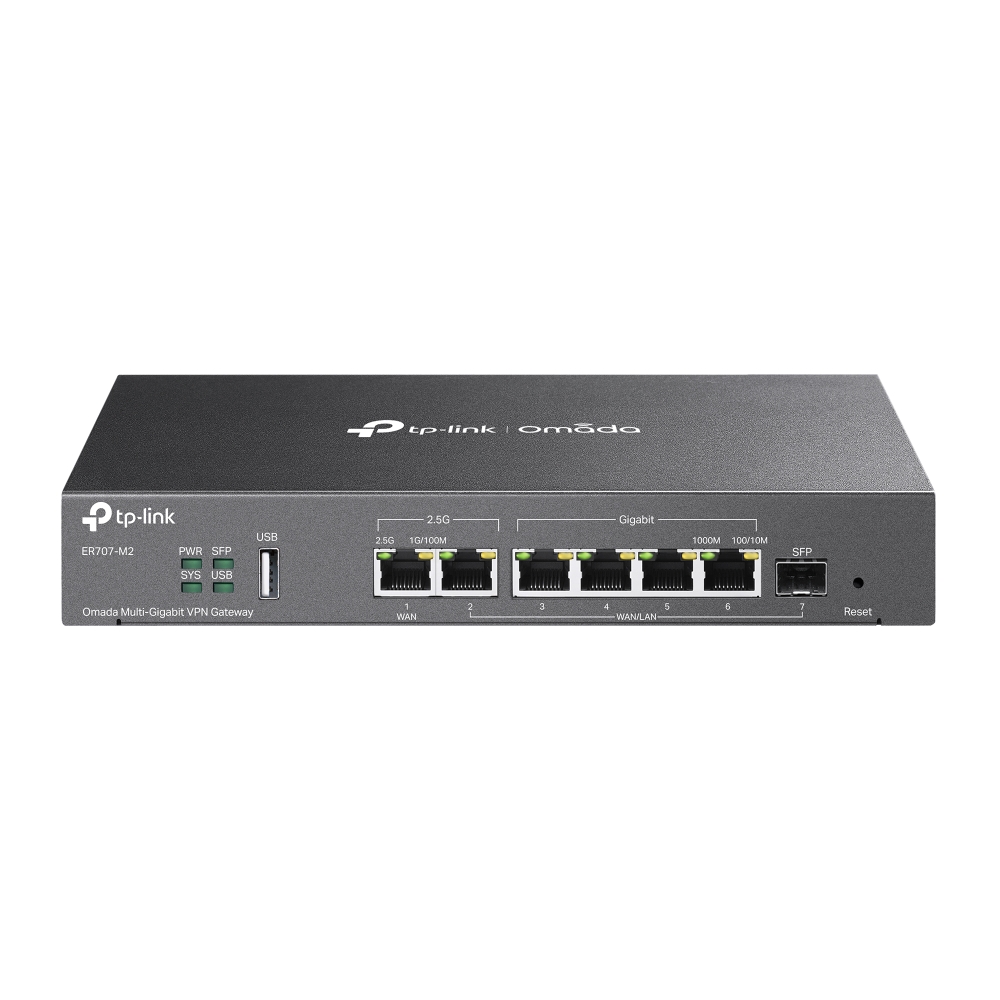

Router VPN Omada Multi-Gigabit 6 puertos

El ER707-M2 admite dos puertos 2.5G, así como múltiples protocolos VPN y capacidades VPN de alto rendimiento y alta seguridad, lo que garantiza que las conexiones remotas de los empleados a sus oficinas principales sean tan seguras como si estuvieran allí en persona.

SEGURIDAD

• Control de Acceso: Source/Destination IP Based Access Control/FQDN
• Filtrado: • WEB Group Filtering § • URL Categoroies and URLs Filtering • Web Security §
• Inspección ARP: • Sending GARP Packets § • ARP Scanning § • IP-MAC Binding § • ARP Detection
• Defensa contra Ataques: • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

CARACTERÍSTICAS DE HARDWARE

• Estándares y Protocolos: • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q， IEEE802.3bz • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
• Interfaz: • 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
• Medios de Red: • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• Cantidad de Ventiladores: Fanless
• Botones: Reset Button
• Fuente de Alimentación: 12V/1.5A Adapter
• Potencia PoE: –
• Flash: 128MB NAND
• DRAM: 1 GB DDR4
• LED: PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
• Dimensiones: 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
• Protección: 4 kV surge protection
• Carcasa: Steel
• Montaje: Desktop/Wall/Rackmount
• Consumo de Potencia Máximo: 14.2 W (with USB2.0 connected) 7.1 W (without USB2.0 connected)

RENDIMIENTO

• IPS Throughput: TCP: 208 Mbps; UDP: 161 Mbps
• DPI Throughput: TCP: 1823 Mbps; UDP: 1272 Mbps
• WireGuard VPN Throughput: 343Mbps
• Sesiones Concurrentes: 500,000
• Nuevas sesiones/Segundos: 6,000
• NAT (IP Estática): 2365.17 Mbps / 2364.45 Mbps
• NAT(DHCP): 2364.45 Mbps / 2366.04 Mbps
• NAT(PPPoE): 2347.14 Mbps / 2348.29 Mbps
• NAT (L2TP): 1308.86 Mbps / 974.10 Mbps
• NAT (PPTP): 1236.27 Mbps / 1280.99 Mbps
• Rendimiento VPN IPsec: • ESP-SHA1-AES256: 673.3 Mbps • ESP-SHA256-AES256: 650.2 Mbps • ESP-SHA384-AES256: 629.3 Mbps • ESP-SHA512-AES256: 633.8 Mbps
• Rendimiento VPN L2TP: • Unencrypted: 1243.7 Mbps • Encrypted: 561.0 Mbps
• Rendimiento VPN SSL: 132.24 Mbps
• 66 Byte Packet Forwarding Rate: Upload: 3,471,004pps Download: 3,298,939pps
• 1,518 Byte Packet forwarding rate: Upload: 202,666pps Download: 202,348pps

FUNCIONES BÁSICAS

• Tipo de conexión WAN: • IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6to4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port
• Clonado MAC: Modify WAN/LAN MAC Address †
• DHCP: • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* • WAN DHCP 60
• IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

FUNCIONES AVANZADAS

• Enrutamiento Avanzado: • Static Routing • Policy Routing • RIP (only in Standalone Mode) • OSPF (only in Standalone Mode)
• Control de Ancho de Banda: • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
• Balanceo de Carga: • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing § , Failover) • Online Detection
• NAT: • One-to-One NAT § • Multi-Net NAT • Port Forwarding • Port Triggering § • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT
• Límite de sesión: IP-based Session Limit

VPN

• SD-WAN: √ (Only in Controller Mode)
• SSL VPN: SSL VPN Server 60 SSL VPN Tunnels
• VPN IPsec: • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
• VPN PPTP: • PPTP VPN Server • PPTP VPN Clients (12) • 60 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption
• VPN L2TP: • L2TP VPN Server • L2TP VPN Clients (12) • 60 Tunnels (Shared with PPTP) • L2TP over IPSec
• OpenVPN: • OpenVPN Server • OpenVPN Clients (6) • 66 OpenVPN Tunnels*
• WireGuard VPN: • 20 Tunnels

AUTENTICACIÓN

• Autenticación web: • No Authentication • Simple Password* • Hotspot (Local User/Voucher*/SMS*/Radius*) • External Radius Server • External Portal Server* • LDAP

GESTIÓN

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Gestión Centralizada: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
• Acceso a la nube: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Servicio: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
• Mantenimiento: • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute) § • NTP Synchronize § • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
• Aprovisionamiento sin contacto: Yes. Requires the use of Omada Cloud-Based Controller.
• Funciones de gestión: • Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule*

Otros

• Certificaciones: CE, FCC, RoHS
• Contenido del Paquete: • ER707-M2 • Power Adapter • Quick Installation Guide • Rackmount Kit
• Requisitos del sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
• Factores Ambientales: • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing

Ver ficha técnica oficial del fabricante
