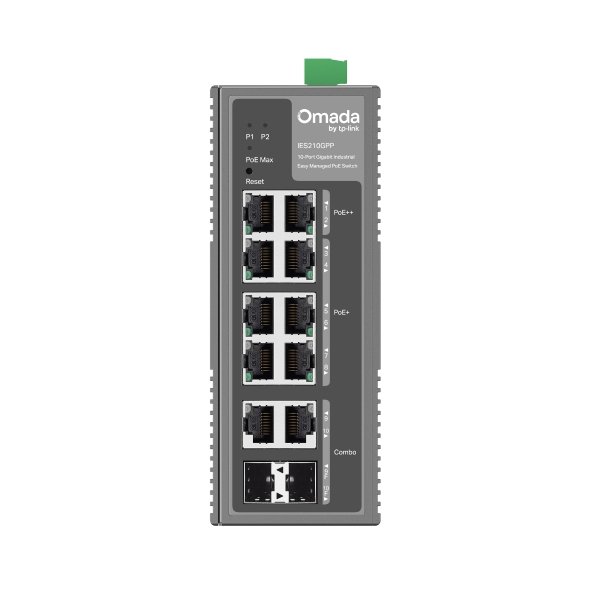

Switch Industrial Omada Gestionable 6 puertos PoE+ y 2 puertos PoE++

Switch Industrial Omada Easy Managed con 6 puertos PoE+ y 2 puertos PoE++

CARACTERÍSTICAS DE HARDWARE

• Interfaz: • 2× 10/100/1000 Mbps PoE++ RJ45 Ports • 6× 10/100/1000 Mbps PoE+ RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX
• Cantidad de Ventiladores: Fanless
• Instalación: • DIN-rail mounting • Wall mounting
• Bloqueo de Seguridad Físico: √
• Fuente de Alimentación: 12-57V 1+1 Redundant DC Power Input
• Puertos PoE (RJ45): • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port • PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port • PoE Budget: – 60W (Input: 12V / 7.2A – 21V / 3.7A)) – 120W (Input: 21V / 6.7A – 46V / 3.1A) – 240W (Input: 46V / 5.7A – 57V / 4.4A)
• Dimensiones: 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
• Surge Protection: • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports

RENDIMIENTO

• Capacidad de Conmutación: 20 Gbps
• Tasa de Reenvío de Paquetes: 14.88 Mpps
• Tabla de Direcciones MAC: 8K
• Memoria del Buffer de Paquete: 4 Mbit
• Jumbo Frame: 15 KB

CARACTERÍSTICAS DE SOFTWARE

• Calidad de Servicio: • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rate Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control
• Características L2: • Link Aggregation – Static Link Aggregation – Up to 4 aggregation groups and up to 6 ports per group • Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP • Spanning Tree – STP (802.1d) – RSTP (802.1w)
• Multicast L2: • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave
• VLAN: • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID
• Método de Transmisión: Store-And-Forward

GESTIÓN

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Gestión Centralizada: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
• Acceso a la nube: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Aprovisionamiento sin contacto: Yes. Requires the use of Omada Cloud-Based Controller
• Funciones de gestión: • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †

Otros

• Certificaciones: FCC, CE, RoHS
• Contenido del Paquete: • IES210GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
• Factores Ambientales: • Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing

Ver ficha técnica oficial del fabricante
