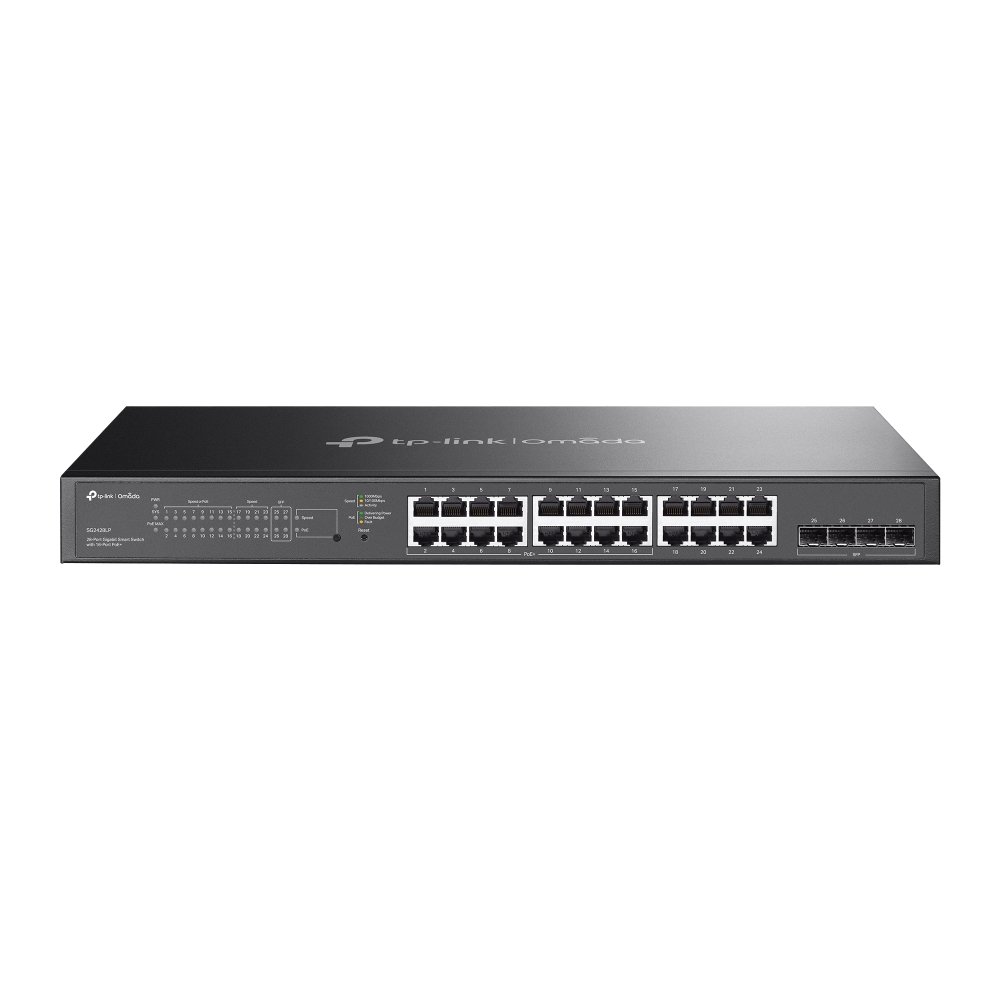

Switch Omada inteligente 28 puertos Gigabit, 16 puertos PoE+ y 4× puertos SFP

Switch Omada Smart de 28 puertos Gigabit y con 16 puertos PoE+ (SG2428LP) | 150 W de potencia | Ideal para vídeovigilancia, punto de acceso y teléfono IP | Fácil de usar | Gestión centralizada en la nube | Aplicación Omada

CARACTERÍSTICAS DE HARDWARE

• Interfaz: • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 8× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots
• Cantidad de Ventiladores: Fanless
• Bloqueo de Seguridad Físico: √
• Fuente de Alimentación: 100-240V AC, 50/60Hz
• Puertos PoE (RJ45): • Standard: 802.3at/af compliant • PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port) • PoE Power Budget: 150 W*
• Dimensiones: 17.3×8.7×1.73 in (440×220×44 mm)
• Montaje: Rack Mountable
• Consumo de Potencia Máximo: 184.7 W (110V/60Hz) (with 150 W PD connected)
• Disipación máxima de calor: 628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected)

RENDIMIENTO

• Capacidad de Conmutación: 56 Gbps
• Tasa de Reenvío de Paquetes: 41.66 Mpps
• Tabla de Direcciones MAC: 8K
• Memoria del Buffer de Paquete: 4.1 Mbit
• Jumbo Frame: 9 KB

CARACTERÍSTICAS DE SOFTWARE

• Calidad de Servicio: • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control: Port/Flow-based Rating Limit • Smoother Performance • Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
• Características L2 y L2+: • 16 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
• Multicast L2: • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile)
• Características Avanzadas: • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Intelligent Network Monitoring † • Abnormal Event Warnings † • Unified Configuration † • Reboot Schedule †
• VLAN: • VLAN Group: Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN
• Lista de Control de Acceso: • Support up to 230 entries • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action – Mirroring – Redirect – Rate Limit – QoS Remark • ACL Rules Binding – Port Binding – VLAN Binding
• Seguridad: • IP-MAC-Port Binding • AAA • 802.1X – Port based authentication – MAC (Host) based authentication – Authentication Method includes PAP/EAP-MD5 – MAB – Guest VLAN – Radius authentication and accountability support • IP/IPv6-MAC Binding – 512 Binding Entries – DHCP Snooping – DHCPv6 Snooping – ARP Inspection – ND Detection • IP Source Guard – 253 Entries – Source IP+Source MAC • IPv6 Source Guard – 183 Entries – Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
• IPv6: • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
• MIBs: • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)

GESTIÓN

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Gestión Centralizada: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
• Acceso a la nube: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Aprovisionamiento sin contacto: Yes. Requiring the use of Omada Cloud-Based Controller
• Funciones de gestión: • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log

Otros

• Certificaciones: CE, FCC
• Contenido del Paquete: • SG2428LP • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
• Requisitos del sistema: Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
• Factores Ambientales: • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Ver ficha técnica oficial del fabricante
