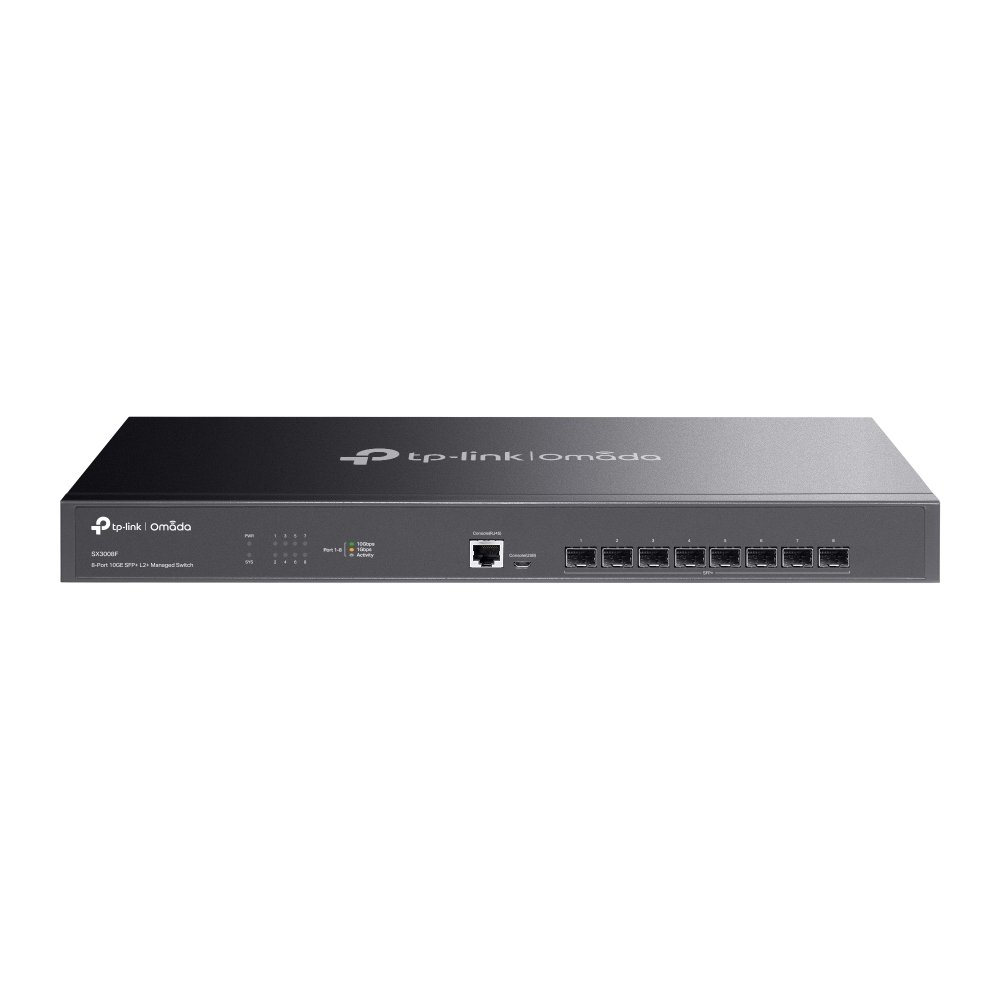

SX3008F

Switch Omada L2+ de 8 puertos SFP+ a 10G. Como switch a 10G con puertos SFP+ Full que se integra a la perfección en la plataforma Omada Software Defined Networking (SDN), SX3008F permite la gestión remota y centralizada, en cualquier lugar y en cualquier momento.

CARACTERÍSTICAS DE HARDWARE

• Interfaz: • 8× 10GE SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
• Cantidad de Ventiladores: Fanless
• Bloqueo de Seguridad Físico: √
• Fuente de Alimentación: 100-240 V AC~50/60 Hz
• Dimensiones: 17.3×7.1×1.7 in (440×180×44 mm)
• Montaje: Rack Mountable
• Consumo de Potencia Máximo: 15.46 W (220 V / 50 Hz)
• Disipación máxima de calor: 52.75 BTU/hr (220 V / 50 Hz)

RENDIMIENTO

• Capacidad de Conmutación: 160 Gbps
• Tasa de Reenvío de Paquetes: 119.04 Mpps
• Tabla de Direcciones MAC: 32 K
• Memoria del Buffer de Paquete: 16 Mbit
• Jumbo Frame: 9 KB

CARACTERÍSTICAS DE SOFTWARE

• Calidad de Servicio: • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
• Características L2 y L2+: • 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring
• Multicast L2: • Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile
• Características Avanzadas: • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Intelligent Network Monitoring † • Abnormal Event Warnings † • Unified Configuration † • Reboot Schedule † ISP Features *: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow
• VLAN: • VLAN Group (802.1q VLAN): Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 • Private VLAN • GVRP • VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ • Voice VLAN
• Lista de Control de Acceso: • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN
• Seguridad: • IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – ND Snooping – IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • 802.1X – Port base authentication – MAC-based authentication – VLAN Assignment – MAB – Guest VLAN – Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
• IPv6: • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
• MIBs: • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

GESTIÓN

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Gestión Centralizada: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
• Acceso a la nube: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Aprovisionamiento sin contacto: Yes. Requiring the use of Omada Cloud-Based Controller.
• Funciones de gestión: • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log

Otros

• Certificaciones: CE, FCC, RoHS
• Contenido del Paquete: • SX3008F Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
• Requisitos del sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
• Factores Ambientales: • Operating Temperature: 0–50 ℃ (32–122 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
