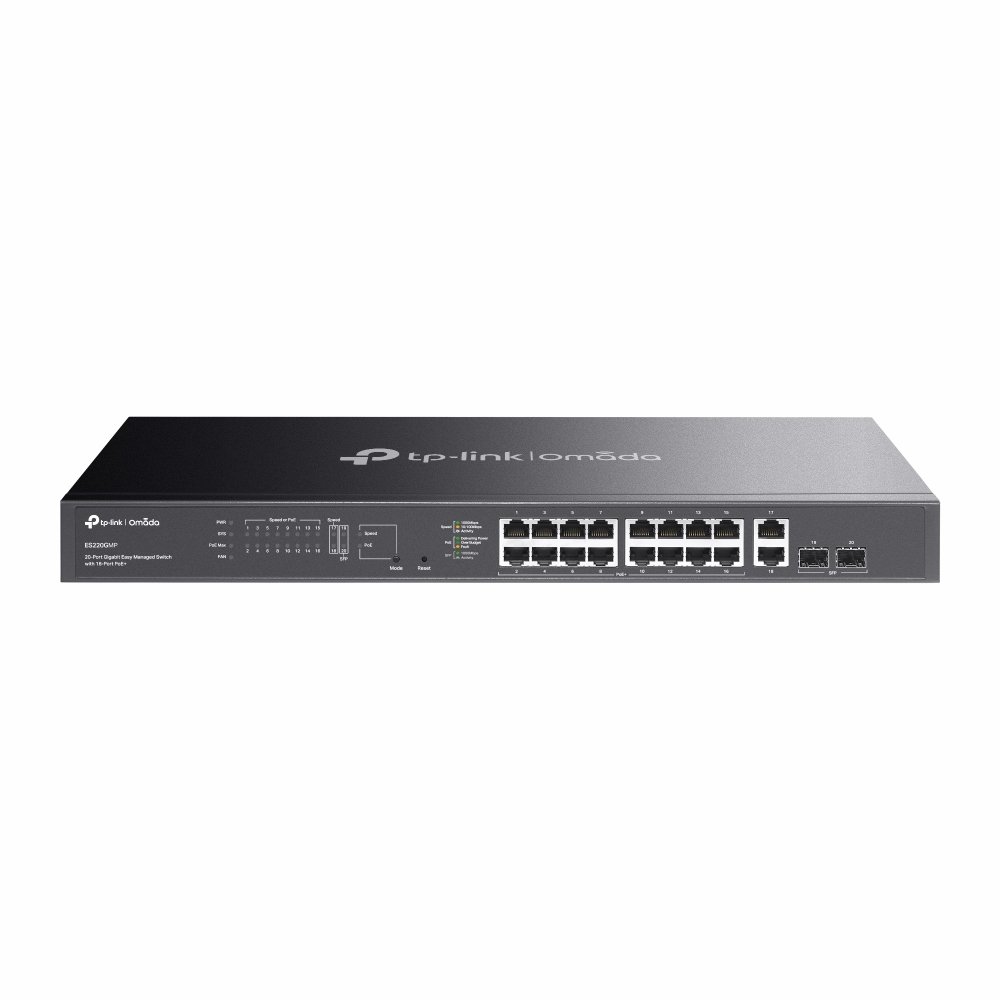

Switch Omada Gestionable 20 Puertos Gigabit con 16 Puertos PoE+

Switch Omada Easy Managed 20 Puertos Gigabit con 16 Puertos PoE+

CARACTERÍSTICAS DE HARDWARE

• Interfaz: • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX
• Cantidad de Ventiladores: 2
• Instalación: Rackmountable
• Bloqueo de Seguridad Físico: √
• Fuente de Alimentación: 100–240V AC, 50/60Hz
• Puertos PoE (RJ45): • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 16 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery ‡ • Up to 250m PoE transmission distance**
• Dimensiones: 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
• Surge Protection: ±6kV

RENDIMIENTO

• Capacidad de Conmutación: 40 Gbps
• Tasa de Reenvío de Paquetes: 29.76 Mpps
• Tabla de Direcciones MAC: 8K
• Memoria del Buffer de Paquete: 4 Mbit
• Jumbo Frame: 15 KB

CARACTERÍSTICAS DE SOFTWARE

• Calidad de Servicio: • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control △
• Características L2: • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP
• Multicast L2: • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave
• VLAN: • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID
• Método de Transmisión: Store-And-Forward

GESTIÓN

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Gestión Centralizada: • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
• Acceso a la nube: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Aprovisionamiento sin contacto: Yes. Requires the use of Omada Cloud-Based Controller
• Funciones de gestión: • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †

Otros

• Certificaciones: FCC, CE, RoHS
• Contenido del Paquete: • ES220GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide
• Factores Ambientales: • Operating Temperature: -5℃~50℃ (23℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

Ver ficha técnica oficial del fabricante
