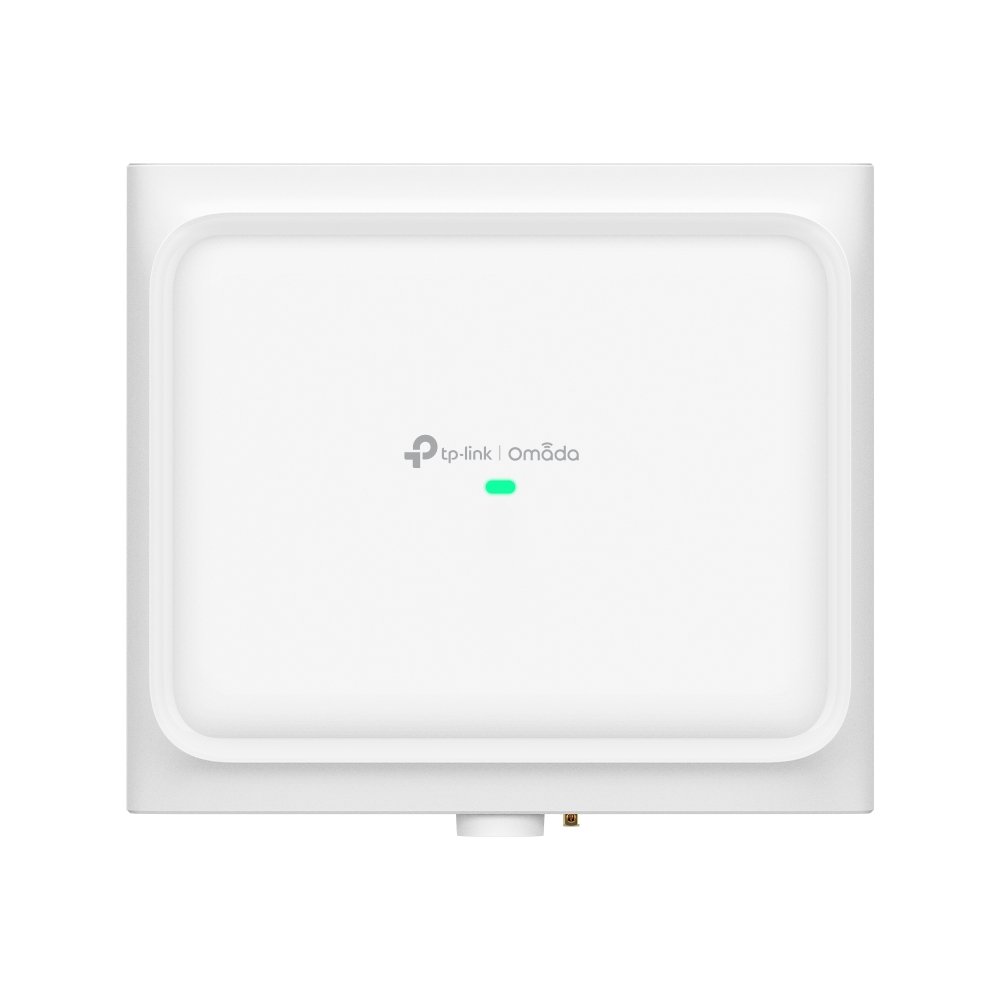

Punto de Acceso Sectorial 120º Wi-Fi 6 AX3000 Interior/Exterior 5 GHz

Punto de Acceso Sectorial 120º Wi-Fi 6 AX3000 Interior/Exterior

CARACTERÍSTICAS DE HARDWARE

• Interfaz: 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
• Botones: Reset
• Fuente de Alimentación: • 802.3at PoE • 48V Passive PoE
• Consumo de Potencia: • EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE)
• Dimensiones: 9.1 × 8.2 × 2.3 in (230 × 207.5 × 58 mm)
• Antenas: Built-in Directional Antennas: • 2.4 GHz: 2× 8 dBi • 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal; 30° Vertical
• Bluetooth: Yes
• Carcasa resistente a la intemperie: IP68
• Montaje: Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment Note: Optional bracket accessories need to be purchased separately

GESTIÓN

• Omada App: Yes
• Restore & Backup: Yes
• NTP: Yes
• Gestión Centralizada: • Omada Hardware Controller • Omada Software Controller • Omada Cloud-based Controller • Omada APP
• Acceso a la nube: Yes, through • Omada Hardware Controller • Omada Software Controller • Omada Cloud-based Controller • Omada APP
• Alertas por Correo Electrónico: Yes
• LED de control ON / OFF: Yes
• Control de Gestión de Acceso MAC: Yes
• SNMP: v1, v2c, v3
• Acceso al Registro de Sistema Local/ Registro del Sistema Remoto: Yes
• SSH: Yes
• Gestión basada en Web: Yes
• Gestión Multi-sitio: Yes
• Aprovisionamiento sin contacto: Yes. Requiring the use of Omada Cloud-Based Controller

CARACTERÍSTICAS INALÁMBRICAS

• Coverage: • 2.4 GHz: 200+ m * • 5 GHz: 500+ m *
• Clientes concurrentes: 250+ **
• Estándares Inalámbricos: IEEE 802.11 a/b/g/n/ac/ax
• Frecuencia: 2.4 GHz, 5 GHz
• Tasa de Señal: 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) †
• Funciones Inalámbricas: • 1024-QAM • DL/UL OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 on each band) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO • Omada Mesh § • Seamless Roaming(802.11k/v/r) § • Band Steering • Load Balance • Airtime Fairness • Beamforming • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Wireless Statistics • Static IP/Dynamic IP
• Seguridad Inalámbrica: • Captive Portal Authentication § • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Potencia de Transmisión: • CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)

Otros

• Certificaciones: CE, FCC, RoHS
• Contenido del Paquete: • Access Point EAP650 D120-Outdoor • Mounting Kits • Installation Guide
• Requisitos del sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Factores Ambientales: • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
